Shengmilo MX06 Owner's Manual

1.About Manual

This manual contains details of the product, information on its operation and maintenance, and other helpful tips for owners. Read it carefully and familiarize yourself with the Shengmilo MX06 before using it to ensure safe use, reduce the risk of damage and premature wear, and prevent accidents. Be sure to retain this manual as your convenient Shengmilo MX06 information source.

This manual contains many Warnings and Cautions concerning safe operation, and consequences if proper setup,operation and maintenance guidelines are not followed. All information in this manual should be carefully reviewed.

11.Battery Charging

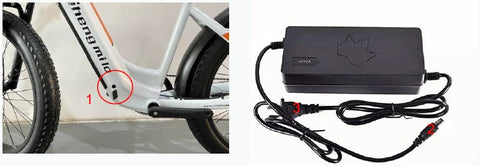

11.1.Charging Procedure for Off-bike Charging

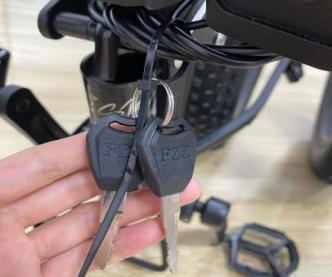

Step 1: Find the keys located on the handlebar and remove them. If you cut them from the handlebars, be careful not to damage any of the wires.
NOTICE: Please keep your key and its spare in a safe place. Once lost, they are difficult to copy.

11.2.After Charging

1. Please unplug the main power supply first by removing the plug from the power socket, then remove the DC port from the battery.You can then check the battery status on the display screen.

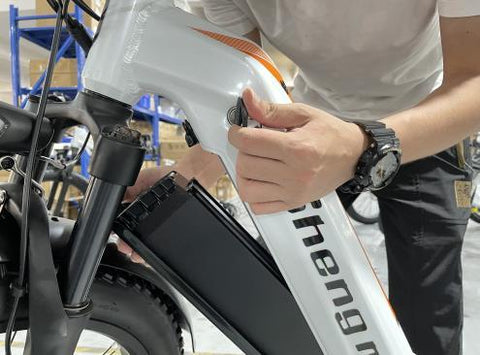

2. Insert the battery with caution, making sure that the slots at the bottom of the battery align with the pins on the bike frame, and slide in carefully to avoid damaging the interior circuitry.
3. Lock the battery when finished to prevent theft.

NOTICE: If your battery displays abnormal charging behavior, such as:
• Longer-than-expected charge time
• Strange smell, smoke, or liquid emanating from battery and/or charger
• Overheating battery and/or charger
Please stop charging and contact us immediately

 11.3.Charging Tips

• The battery can be recharged on or off the bike.
• A new battery may take longer to be fully charged when depleted.
• The charger will automatically stop charging once the battery pack is fully charged.
• You can recharge the battery after short rides as it does not have a memory effect.

11.4.Precautions

• While charging, please keep your battery away from direct sunlight, liquid, dirt or debris, and metal objects. Do not allow the battery to be charged in environments under 14° Fahrenheit (-10° Celsius) and over 104° Fahrenheit (40° Celsius).
•  Do not cover the charger when charging.
•  Keep the battery away from children while charging.
• Make sure to only use an approved Shengmilo bike charger purchased directly from www.shengmilo-bikes.com for your specific bike serial number.

11.5.Before Riding

Ensure that the battery has been properly secured to the bike before each use by grasping the battery pack and pulling upwards, testing the security of the pack.

11.6.Battery Maintenance ( 4 8 V 1 7 . 5 A H Shengmilo Lithium battery)

•  Do not fully drain your battery. Turn off the power when the battery charge is low.
• Fully charge the battery after each use, no matter how much power is used. This will prolong the battery life. If battery power is not used for a long time, store the battery with a full charge and charge it once a month.
• The Shengmilo bike can be safely ridden in light rain. However, riding through very heavy downpours or through flooded streets is not recommended, as the crank and/or motor can get wet, which may cause damage.
• Keep the battery away from open flame and other high-temperature heat sources. Do not expose the battery to direct sunlight or recharge immediately after use in high-temperature weather.

NOTICE: It is not recommended to make any modifications to the battery or the motor. If the battery is tampered with, and there are any problems with the altered battery or motor, it will not be covered under Shengmilo's warranty.

11.7.Charger Care Information

1. Check the charger, charger cables, and battery for damage before beginning each charge.
2.  Always charge in a safe area that is cool, dry, indoors, away from direct sunlight, dirt, or debris, in a clear area away from potential to trip on the charging cords, or for damage to occur to the bike, battery, or charging equipment while parked and/or charging. The battery can be charged on or off the bike.
3. The battery should be recharged after each use, so it is ready to go the full range per charge next ride. There is no memory effect, so charging the battery after short rides will not cause damage.
4.  Charging the battery normally takes 6-7 hours.
5. The charge indicator lights will show a red light while the battery charges. When charging is complete, one indicator light will turn green. Ensure the lights face upward when charging.
6. Remove the charger from the battery within one hour of the green light indicating a complete charge.
7. Never charge a battery for more than 12 hours at a time.Do not leave a charging battery unattended.

12.Riding Modes

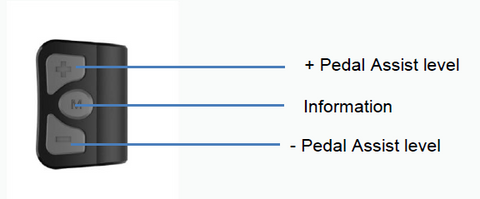

12.1.Pedal-assist

Pedal-Assist is an operating mode on e-bikes designed to engage the motor to assist, but not replace, your own pedaling effort. When you are
operating your bike in the pedal-assist mode, you can adjust the setting according to your preference. Shengmilo has five pedal assist settings
- ranging from 1 to 5.

• Higher pedal settings (L4/5) would be most helpful for those who want to ride faster with minimum effort. These settings are perfect for people who want to arrive fresh and timely at work, without being sweaty and exhausted.
•  Lower pedal settings (L1/2) are popular for Shengmilo riders to use after work, or when leisurely exercise is preferred. These are best to use on the way home from work, to refresh yourself and relieve stress accumulated throughout the entire workday. Moreover, lower settings can extend the usable range for longer rides, maximizing enjoyment while minimizing physical stress and fatigue.

12.2.Throttle-only

The throttle mode is similar to how a motorcycle or scooter operates, alleviating the need to pedal or providing an additional boost simply by twisting the throttle.

Shengmilo MX06 can reach speeds of up to 25 miles per hour with throttle mode, which not only allows you to travel faster but also reassures riders with extra power whenever needed, depending on traffic conditions and rider energy levels. If you are an adventurer who chases after speed and distance without compromising comfort or safety, the throttle-assisted Shengmilo would be your perfect companion.

12.3.Pedal-only

In this mode, the Shengmilo will perform like a normal bike, as you’ll be riding without any assistance from the motor. This mode is
especially useful if you run out of battery, or are looking for more intensive resistance training.
We suggest that you select a lower assistance level when you first ride your Shengmilo MX06. After becoming more comfortable with the
riding characteristics of our e-bike, and more familiar with the varying range requirements of your most common destinations and
commuting routes, you can then make any needed adjustments to pedal-assist settings, as well as the throttle use frequency, riding position,
etc.

12.4.Riding Limitations

Following are some limitations needing riders’ careful attention to ensure the hub motor does not overheat or become damaged from excessive loading:
• Do not attempt to ride up hills steeper than 15% grade.
• Use the pedals to assist the motor when climbing hills and accelerating from a stop.
• Avoid sudden starts and stops.
• Generally accelerate at a moderate pace, rather than aggressively

13.Maintenance

13.1.Battery Maintenance (48V 17.5AH Shengmilo battery)

1. Don't fully drain your battery. Turn off the power when the battery charge is low.
2. Fully charge the battery after each use, no matter how much power is used. This will prolong the battery life. If the battery is not used for a
long time, store the battery with a full charge and charge it once a month.
3. Shengmilo MX06 can be safely ridden in light rain. However, riding through very heavy downpours or through flooded streets is not
recommended, as the crank and/or motor can get wet, which may cause problems.
4. Keep the battery away from an open flame or a high-temperature heat source. Do not expose the battery to direct sunlight or recharge
immediately after use in high-temperature weather.

13.2.Motor Maintenance (500W BAFANG Geared Hub Motor with 80 Nm of torque)

1. Please check your motor frequently and tighten any loose screws or nuts, to prevent the vehicle from breaking down due to disconnected
wires.
2. The brushless motors are not waterproof, so avoid riding through water deeper than the lower edge of the electric wheel hub to avoid
motor failure.

 13.3.Chain Maintenance

1. We recommend cleaning the chain after each ride, especially in rainy and humid environments. Use a dry cloth to wipe the chain and its
accessories clean. Use a brush to remove sand and dirt stuck in the chain, along with use warm soapy water if needed. Do not use strong
acidic or alkaline cleaning agents (such as rust remover), because these chemicals can damage the chain.
2. Apply lubricating oil after cleaning to avoid rust. First, make sure the chain is dry, and then apply the lubricating oil to the bearings.
3. To prevent unnecessary chain wear, try to maintain a vertical chain position when shifting gears (do not use the smallest gear with the
smallest flywheel, or the largest gear with the largest flywheel, etc.).

13.4. Front Fork Maintenance

1. Always use a clean, oil-free lint-free cloth with plain or soapy water to clean your bike. To prevent water from flowing into the front fork,
you can turn the bike upside down. Dry with a lint-free towel after washing. Pay specific attention to the inner tube and the dust seal to
reduce wear and prevent thinning of the inner tube, which can lead to significant damage if the aluminum is exposed to air.
2. We recommend using a front fork dust cover to protect the inner tube of your front fork. This prevents dust from entering as well as hard
objects from hitting the inner tube.

14.Limited Warranty

15.Warranty Info

•All Shengmilo e-bikes are covered under our manufacturer's 1 year, 6 months, and three months warranty for the original owner against all manufacturing defects (All free Accessories are not covered by warranty service).

•Only the original owner of bikes purchased from Shengmilo's online store is covered by this Limited Warranty. The Warranty Period begins upon your receipt of the bikes and shall end immediately upon the earlier of the end of the Warranty Period or any sale or transfer of the bike to another person, and under no circumstances shall the Limited Warranty apply to any subsequent owner or other transfers of the bike.

•You must have the initial owner's name & the initial order number to start a warranty claim.

•The Covered Components are warranted to be free of defects in materials and/or workmanship during the Warranty Period.

16.WARRANTY WILL COVER

Shengmilo will replace any component that is deemed to be defective or damaged (including damage incurred during shipment) without user error. The warranty covers the listed products and follows the terms below:

16.1.Frame

1. Shengmilo' frames are covered by a replacement warranty for 12 months.
2. This warranty includes a replacement frame Labor charges to changeover parts to replacement frames are not included.
3. Shengmilo reserves the right to use scratch and dent stock when replacing a frame under this Frame styles and/or colors not in stock may be replaced with a compatible style and/or color at the discretion of Shengmilo.

16.2.Batteries

1. Shengmilo' batteries are covered by a 6-month prorated warranty.
2. Defective batteries will send accessories to customers for free for self-repair during the 6-month service period. The warranty period for repaired batteries is based on the original purchase date.
3. After the first 6 months of service 一 A prorated credit, based on months of service, will be applied toward the purchase of a new battery. Batteries purchased at pro-rated cost will have a new 6 months warranty based on the pro-rated purchase date.
4. No cash reimbursement will be
5. Batteries can be assessed and found defective directly by Shengmilo only.

17.Parts & Components

ALL Original Shengmilo bike's parts & components are covered by the warranty.

18.This Limited Warranty Does Not Cover:

1. Normal wear and tear of any Covered
2. Labor charges to changeover parts to replacement frames are not included.
3. Consumables or normal wear and tear parts (including without limitation tires, tubes, brake pads, cables, housing, grips, chain, and spokes).
4. Any damage or defects to Covered Components resulting from failure to follow instructions in the e-bike owner's manual, acts of God, accident, misuse, neglect, abuse, commercial use, alterations, modification, improper assembly, installation of parts or accessories not originally intended or compatible with the bike as sold, operator error, water damage, extreme riding, stunt riding, or improper follow-up maintenance.
5. For the avoidance of doubt, Shengmilo will not be liable and/or responsible for any damage, failure, or loss caused by any unauthorized service or use of unauthorized parts.
6. The Battery is not warranted from damage resulting from power surges, use of an improper charger, improper maintenance, or another such as misuse, normal wear, or water.
7. Any products sold by Shengmilo that are not an e-bike.

19.Link to Assembly Video and Online Resources

19.1.Assembly Video

Please refer to the “COMMUNITY Video" at the Shengmilo website https://shengmiloshop.com/pages/videos  to view the official Shengmilo MX06 Assembly Video.

19.2.Online Resources

For more information on best practices, please visit the Shengmilo official website https://shengmiloshop.com or contact Shengmilo Product Support with any questions.
